Item

Data

Pitch

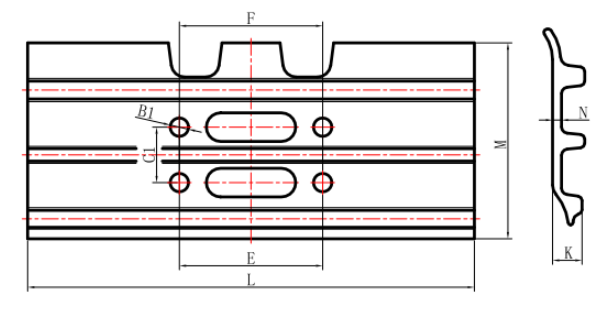

Specification data（mm）

Applicable

models

B1

B2

C1

C2

D

E

F

K

L

M

N

1

W175-8-L

175

16.5

60.33

108

108

33

450

198.9

8

HD450、EX100-1/2/3/5、EX120-1/3、R110、R150、EC140

2

W175-8-L

175

16.5

60.33

108

108

33

500

198.9

8

3

W175-8-L

175

16.5

60.33

108

108

33

600

198.9

8

4

W175-8-L

175

16.5

60.33

108

108

33

700

198.9

8

5

W175-8-L

175

16.5

60.33

108

108

33

800

198.9

8

6

W175-9.5-L

175

16.5

60.33

108

108

34.5

450

198.9

9.5

HD450、EX100-1/2/3/5、EX120-1/3、R110、R150、EC140

7

W175-9.5-L

175

16.5

60.33

108

108

34.5

500

198.9

9.5

8

W175-9.5-L

175

16.5

60.33

108

108

34.5

600

198.9

9.5

9

W175-9.5-L

175

16.5

60.33

108

108

34.5

700

198.9

9.5

10

W175-9.5-L

175

16.5

60.33

108

108

34.5

800

198.9

9.5
