Item

Data

Pitch

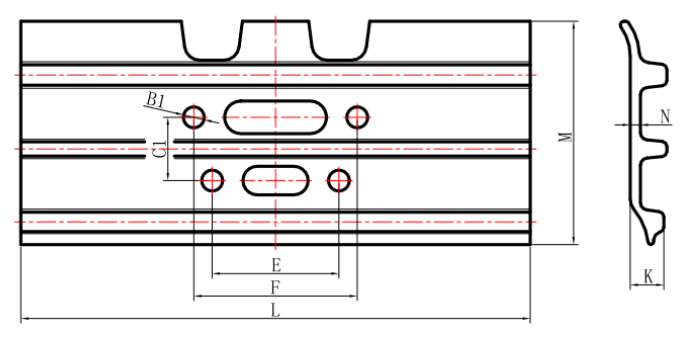

Specification data（mm）

Applicable

models

B1

B2

C1

C2

D

E

F

K

L

M

N

1

W216-11-L

216

22.5

76.2

140.4

178.4

41

600

250

11

PC300-6/7、EX300-5、EX330-5、R335-7

2

W216-11-L

216

22.5

76.2

140.4

178.4

41

800

250

11

3

W216-11-L

216

22.5

76.2

140.4

178.4

41

900

250

11

4

W216-13-L

216

22.5

76.2

140.4

178.4

49

600

247

13

PC300-6/7、EX300-5、EX330-5、R335-7

5

W216-13-L

216

22.5

76.2

140.4

178.4

49

800

247

13

6

W216-13-L

216

22.5

76.2

140.4

178.4

49

900

247

13

7

W216-16-L

216

22.5

76.2

140.4

178.4

52

600

247

16

PC300-6/7、EX300-5、EX330-5、R335-7

8

W216-16-L

216

22.5

76.2

140.4

178.4

52

800

247

16

9

W216-16-L

216

22.5

76.2

140.4

178.4

52

900

247

16
