Specification | ||||||||||||||

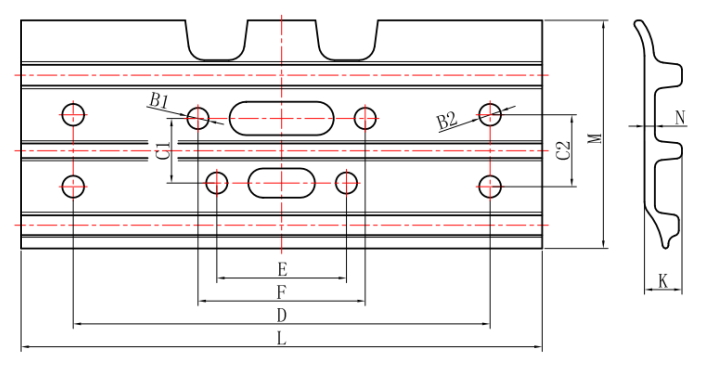

Item | Data | Pitch | Specification data（mm） | Applicable models | ||||||||||
B1 | B2 | C1 | C2 | D | E | F | K | L | M | N | ||||
1 | W135-6-L | 135 | 12.5 | 43.2 | 72 | 99 | 20 | 260 | 154 | 6 | PC60-3/5、DH55、EC55 | |||
2 | W135-6-L | 135 | 12.5 | 14 | 43.2 | 46 | 300 | 72 | 99 | 20 | 350 | 154 | 6 | |
3 | W135-6-L | 135 | 12.5 | 14 | 43.2 | 46 | 300 | 72 | 99 | 20 | 400 | 154 | 6 | |
4 | W135-6-L | 135 | 12.5 | 14 | 43.2 | 46 | 300 | 72 | 99 | 20 | 600 | 154 | 6 | |
