Specification | ||||||||||||||

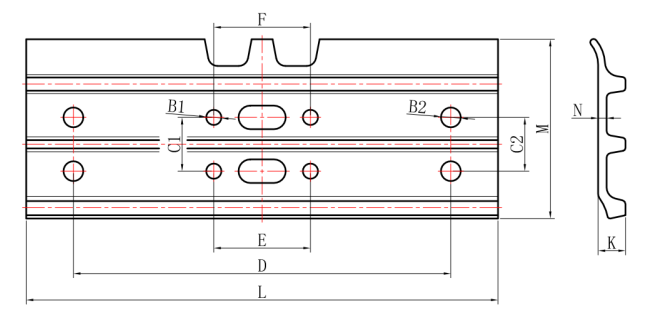

Item | Data | Pitch | Specification data（mm） | Applicable models | ||||||||||
B1 | B2 | C1 | C2 | D | E | F | K | L | M | N | ||||
1 | W171-8-L | 175 | 16.5 | 60.33 | 108 | 108 | 28 | 500 | 190 | 8 | HD450 | |||
2 | W171-8-L | 175 | 16.5 | 60.33 | 108 | 108 | 28 | 600 | 190 | 8 | ||||
3 | W171-8-L | 175 | 16.5 | 60.33 | 108 | 108 | 28 | 700 | 190 | 8 | ||||
4 | W171-9.5-L | 175 | 16.5 | 60.33 | 108 | 108 | 29.5 | 500 | 190 | 9.5 | ||||
5 | W171-9.5-L | 175 | 16.5 | 60.33 | 108 | 108 | 29.5 | 600 | 190 | 9.5 | ||||
6 | W171-9.5-L | 175 | 16.5 | 60.33 | 108 | 108 | 29.5 | 700 | 190 | 9.5 | ||||
7 | W171-8-L | 175 | 16.5 | 18 | 60.33 | 60 | 400 | 108 | 108 | 28 | 500 | 190 | 8 | HD450 |
8 | W171-8-L | 175 | 16.5 | 18 | 60.33 | 60 | 400 | 108 | 108 | 28 | 600 | 190 | 8 | |
9 | W171-8-L | 175 | 16.5 | 18 | 60.33 | 60 | 400 | 108 | 108 | 28 | 700 | 190 | 8 | |
10 | W171-9.5-L | 175 | 16.5 | 18 | 60.33 | 60 | 400 | 108 | 108 | 29.5 | 500 | 190 | 9.5 | |
11 | W171-9.5-L | 175 | 16.5 | 18 | 60.33 | 60 | 400 | 108 | 108 | 29.5 | 600 | 190 | 9.5 | |
12 | W171-9.5-L | 175 | 16.5 | 18 | 60.33 | 60 | 400 | 108 | 108 | 29.5 | 700 | 190 | 9.5 | |
