序号

型号

节距

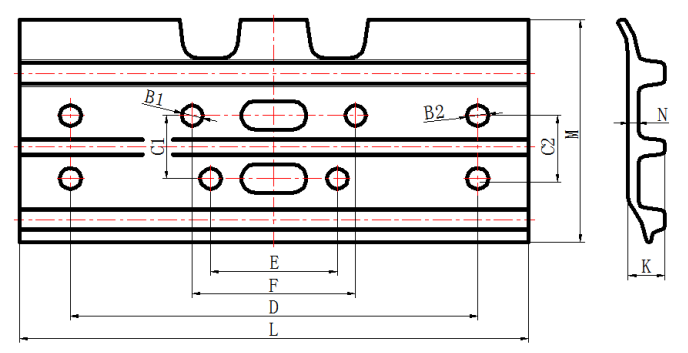

履带板主要安装尺寸（mm）

适用机型

B1

B2

C1

C2

D

E

F

K

L

M

N

1

W175-8-L

175

16.3

57

86.4

102.4

33

500

198.9

8

PC100-5/6、PC120-5、PC130-6

2

W175-8-L

175

16.3

57

86.4

102.4

33

600

198.9

8

3

W175-8-L

175

16.3

57

86.4

102.4

33

700

198.9

8

4

W175-8-L

175

16.3

57

86.4

102.4

33

800

198.9

8

5

W175-9.5-L

175

16.3

57

86.4

102.4

34.5

500

198.9

9.5

6

W175-9.5-L

175

16.3

57

86.4

102.4

34.5

600

198.9

9.5

7

W175-9.5-L

175

16.3

57

86.4

102.4

34.5

700

198.9

9.5

8

W175-9.5-L

175

16.3

57

86.4

102.4

34.5

800

198.9

9.5

9

W175-8-L

175

16.3

18

57

60

400

86.4

102.4

33

500

198.9

8

PC100-5/6、PC120-5、PC130-6

10

W175-8-L

175

16.3

18

57

60

400

86.4

102.4

33

600

198.9

8

11

W175-9.5-L

175

16.3

18

57

60

400

86.4

102.4

34.5

500

198.9

9.5

12

W175-9.5-L

175

16.3

18

57

60

400

86.4

102.4

34.5

600

198.9

9.5
