序号

型号

节距

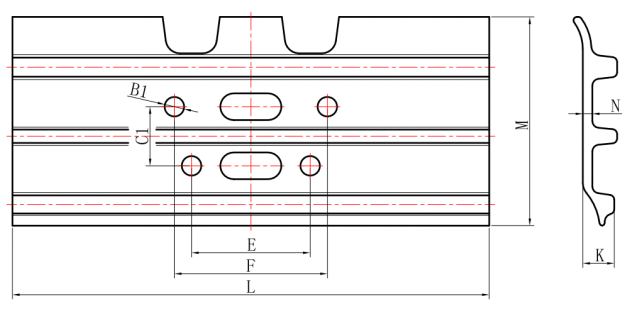

履带板主要安装尺寸（mm）

适用机型

B1

B2

C1

C2

D

E

F

K

L

M

N

1

W175-8-L

175

16.3

58.7

125.4

144.5

33

500

198.9

8

R200

2

W175-8-L

175

16.3

58.7

125.4

144.5

33

600

198.9

8

3

W175-8-L

175

16.3

58.7

125.4

144.5

33

800

198.9

8

4

W175-9.5-L

175

16.3

58.7

125.4

144.5

34.5

500

198.9

9.5

5

W175-9.5-L

175

16.3

58.7

125.4

144.5

34.5

600

198.9

9.5

6

W175-9.5-L

175

16.3

58.7

125.4

144.5

34.5

800

198.9

9.5

7

W175-8-L

175

18.5

58.7

125.4

144.5

33

500

198.9

8

EX200-1

8

W175-8-L

175

18.5

58.7

125.4

144.5

33

600

198.9

8

9

W175-8-L

175

18.5

58.7

125.4

144.5

33

800

198.9

8

10

W175-9.5-L

175

18.5

58.7

125.4

144.5

34.5

500

198.9

9.5

11

W175-9.5-L

175

18.5

58.7

125.4

144.5

34.5

600

198.9

9.5

12

W175-9.5-L

175

18.5

58.7

125.4

144.5

34.5

800

198.9

9.5

13

W175-8-L

175

18.5

57

122.4

158.4

33

500

198.9

8

HD700、HD820、HD770

14

W175-8-L

175

18.5

57

122.4

158.4

33

600

198.9

8

15

W175-8-L

175

18.5

57

122.4

158.4

33

800

198.9

8

16

W175-9.5-L

175

18.5

57

122.4

158.4

34.5

500

198.9

9.5

17

W175-9.5-L

175

18.5

57

122.4

158.4

34.5

600

198.9

9.5

18

W175-9.5-L

175

18.5

57

122.4

158.4

34.5

800

198.9

9.5
